GRIZZL-E HARDWARE: FULLY COMPATIBLE WITH THIRD-PARTY OCPP BACKEND

GRIZZL-E HARDWARE: FULLY COMPATIBLE WITH THIRD-PARTY OCPP BACKEND

Grizzl-E charging stations are fully compatible with OCPP (Open Charge Point Protocol) 1.6J, for integration with third-party OCPP servers. Grizzl-E chargers are designed for openness and interoperability with existing OCPP networks. Some OCPP servers will require integration changes to ensure all functions work correctly.

How to Connect Your Grizzl-E Charger to

an OCPP Server

Grizzl-E Smart

1

Power on the charger. Ensure the indicator light is solid Magenta.

2

Open the Wi-Fi settings on your smartphone or desktop.

3

Connect to the charger's Wi-Fi network (the network name is your charger’s serial number).

4

Open a browser and enter 192.168.4.1 in the address bar.

5

On the webpage, click the Show Available Networks button to display all Wi-Fi networks.

6

Select your Wi-Fi network and enter the Wi-Fi password.

7

Click the Advanced OCPP Configuration button.

8

Enter the full URL of your OCPP server without the station ID (e.g., wss://some.ocpp.server/address/).

9

If required, enter the authentication key for your server.

10

Enter the station ID.

11

Click Apply Changes.

12

Click Save and Reboot.

13

Verify the connection. If successful, the indicator light will be Blue.

Grizzl-E Ultimate and Grizzl-E Mini

1

Power on the charger. Ensure the indicator light is solid Magenta.

2

Connect to the charger's Wi-Fi network (the network name is your charger’s serial number).

3

Open a browser and enter 192.168.4.1 in the address bar to access the configuration page.

4

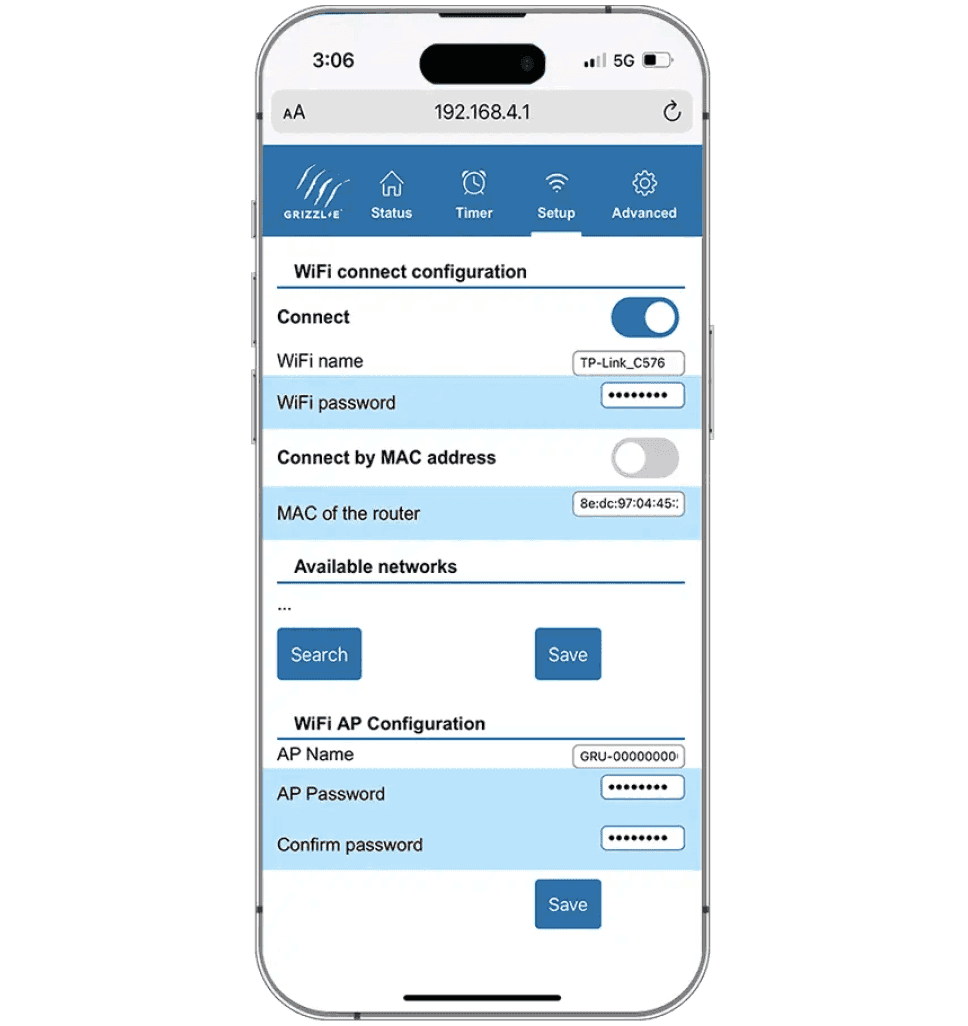

Go to the Setup tab and scroll to Wi-Fi Connect Configuration.

5

Enter your Wi-Fi network name or click Search to display available networks and select yours. Enter the Wi-Fi password.

6

Enable the Connect button, then click Save and Confirm to apply the new settings.

7

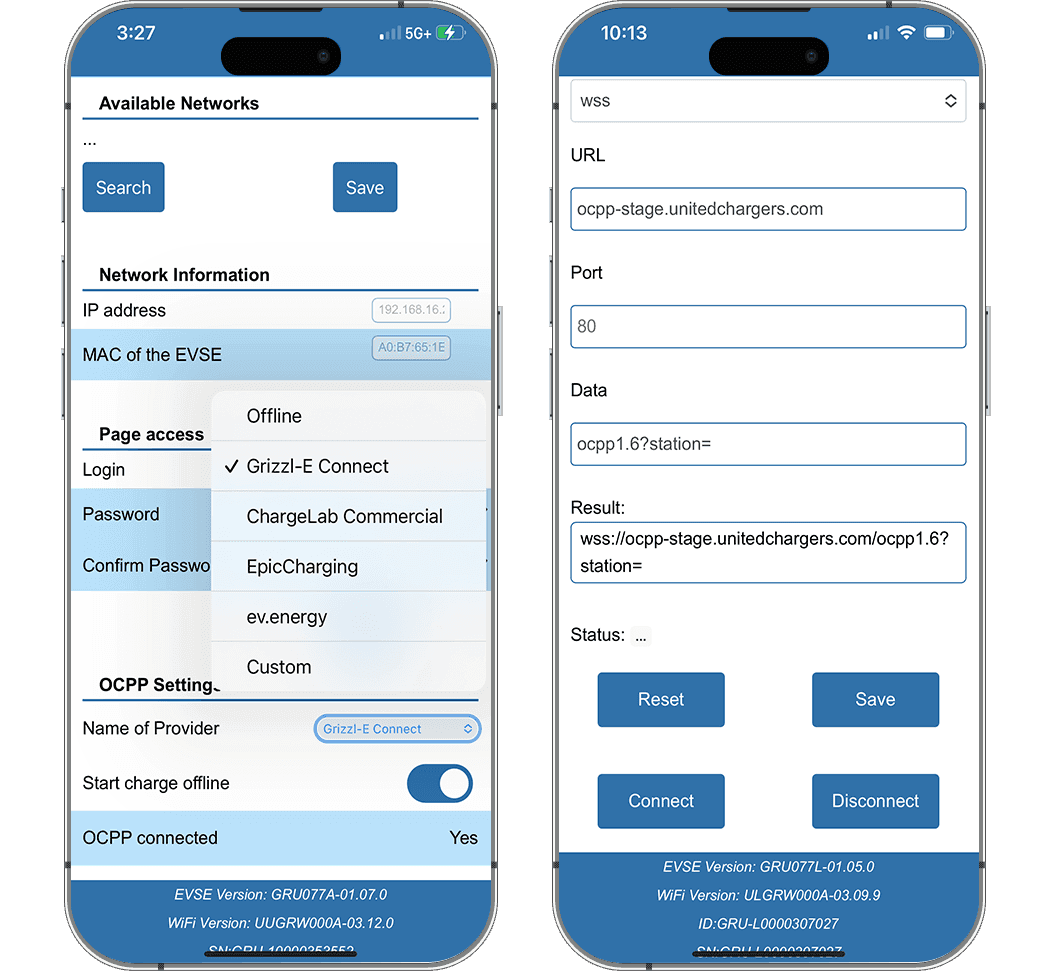

In your browser, enter 192.168.4.1/ocppconfig to open the OCPP configuration page.

8

Enter the third-party OCPP server details in the Configuration section.

9

Click Save.

10

Restart the station’s power.
