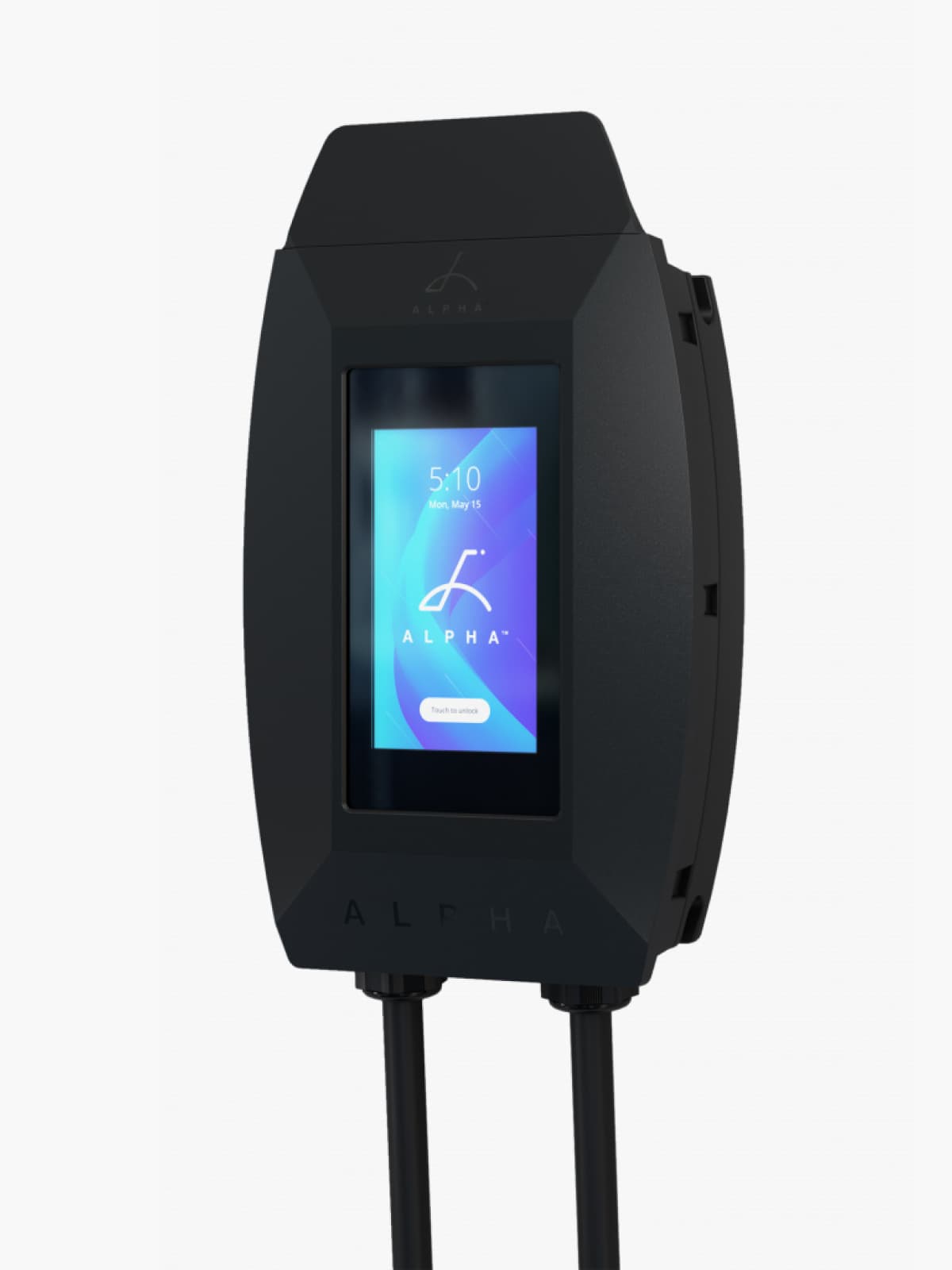

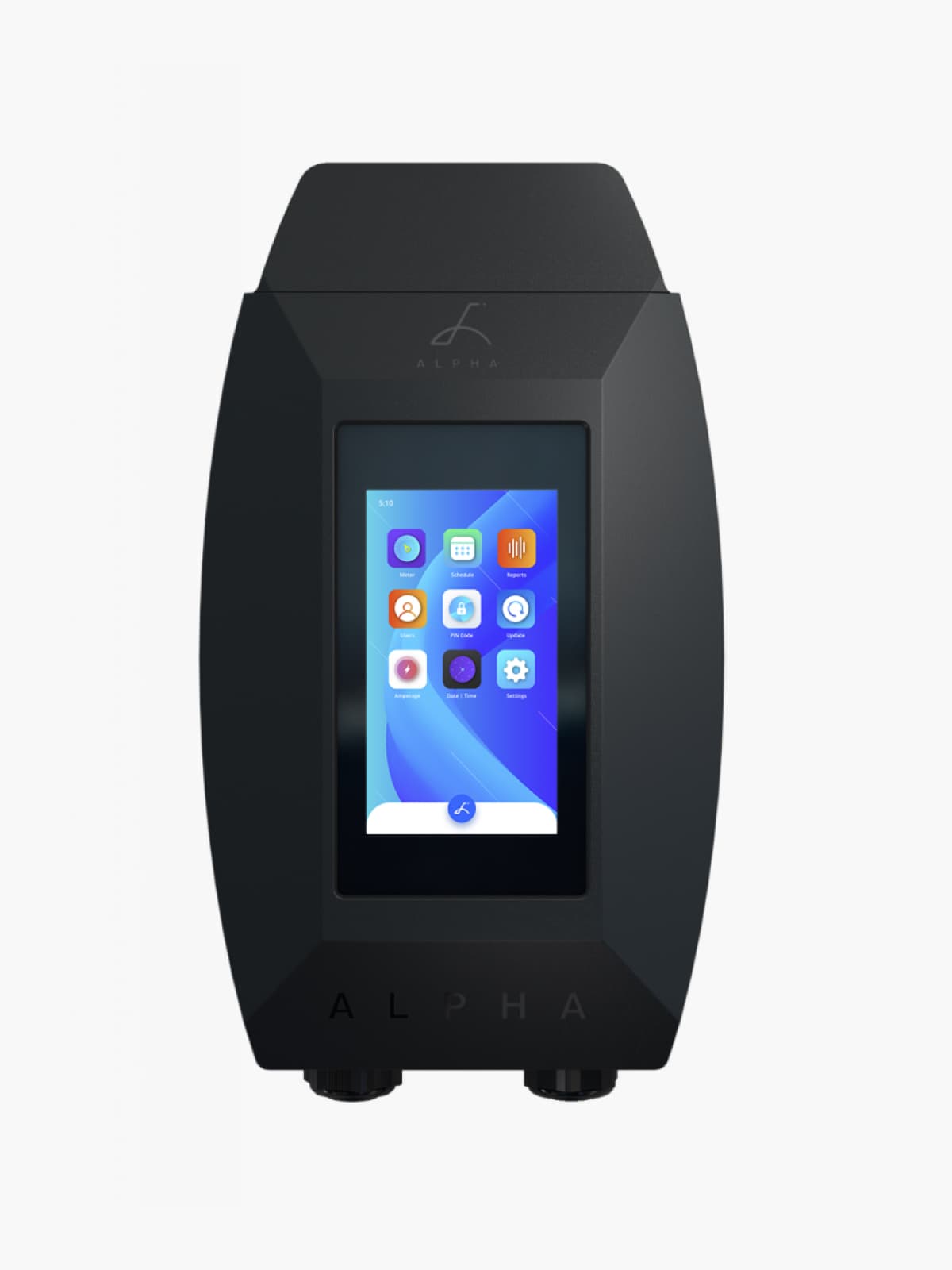

Alpha Classic 40A

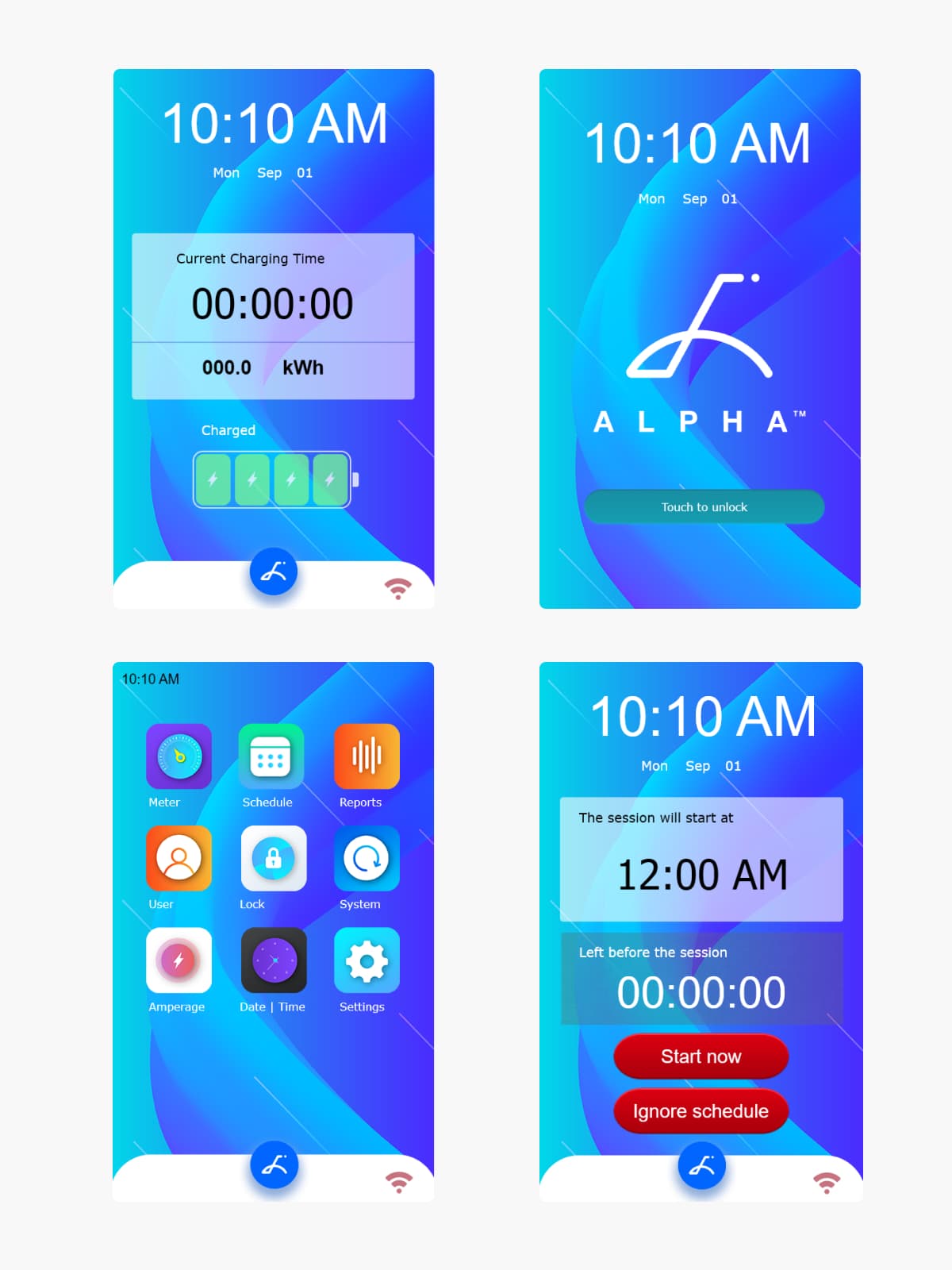

Alpha Classic is an interactive, touch-screen Level 2 EV Charger. The 7-inch touch-screen color display gives you direct interaction with the charger to control settings, monitor real-time charging, create a charging schedule, set maximum power, and more. - 7-inch LCD Multi-function touchscreen display. - Locally Smart Charging Features. View real-time charging statistics, create a charging schedule, and track power consumption. - Protect your charger with a PIN code. - User control. Share the charger with your neighbour and split the costs - separate metering and reporting for each user. - Beautiful design based on top-rated Grizzl-E Charging hardware. - Multi-language User Interface: English, French, Spanish and Chinese - Updates through a USB stick. - 1 Year Warranty

Warranty
Total:$199.00
A white electric car on the move, trailing blue light streaks

Ready to go in

~7.5 hours

Charge overnight. Drive by morning.

Plug in at night and wake up to an EV that's ready to go.

Actual charging time varies by vehicle, battery level and charging conditions.

A charging connector plugged into a snow-covered electric car

Built for any weather

-30°C to +50°C

Reliable charging through snow, rain, heat and cold.

All-season ready
Two phones showing the Grizzl-E Connect app: charger status and a charging session

Always connected

24/7 charging control

Stay connected to your charger wherever you are.

  • Schedule
  • Monitor
  • Track costs
  • Manage
SKUAL1-14-24-PB
Model numberAL1-14-24-PB
MaterialPlastic
Country of originCanada
TypeCharger
Weight11.00 kg / 24.25 lbs
DimensionsL - 510 mm / 20.08 in W - 610 mm / 24.02 in H - 150 mm / 5.91 in
TypeAC Level 2
ConnectorType 1 (SAE J1772)
Max power40A 10 kW
Plug typeNEMA 14-50
ProtectionNEMA 3R
Smart functionNo Internet Connection; Touch Screen
Adjustable current32A, 24A, 16A
Output cable length24ft (7.3m)
Enclosure dimensions16″ x 9.2″ x 3.5″
Operating temperature-30C .. +50C (-22F .. 122F)

Shipping

United Chargers covers the cost of shipping up to $50. The customer must pay any additional shipping expenses.

Delivery

Allow 2-4 business days for order processing and 3-5 business days for delivery. Orders of EV Chargers require a customer's signature at the delivery location.

Refund Policy

Pre-order payments and orders that have not shipped are eligible for a refund. Email [email protected] with your order number and "REFUND" in the email header. If the order is a pre-order or has not shipped out, your refund will be processed. If the order has shipped out of our facilities, the 30-day Product Return Policy will apply.

30-Day Product Return Policy

  • United Chargers will accept returns within 30 days from purchase in the original box only.
  • United Chargers does not accept returns of units that have been opened, installed, or used.
  • To receive a refund for an unused unit in 30 days, the customer must contact United Chargers at [email protected] and send the charger to our facilities at their expense, providing the return tracking number to [email protected].
  • No refunds are guaranteed without providing a tracking number.
  • A restocking fee of 25% of the original purchase price will be applied to products that are returned within the 30-day return policy. The refund will be the MSRP of the charging station minus the 25% Restocking fee.
